Die Profies
The Professionals
+
For Blending
and Mixing
That's what we stand for!
Westfalia-mixing
Mengen und ballen.
Mix
and Form
+
in one operation
with the WESTFALIA-mixing

The outstanding performance of WESTFALIA-mixing machines is the result of more than 90-years experience in the production of mixing machines over four generations.

Our Mixing machines
High pressure cleaner
Sauber. Sauber.
clean. clean.
++
Our high pressure cleaners
with stainless steel cladding

Our high-pressure cleaners work for you in every demanding situation. They are ideal for use in the food industry.

The high-pressure cleaners are equipped with a variety of sophisticated functions that make your job easier.

To the cleaners
Turning, milling, welding
Präzision im Detail.
Subcontracting
special machine
Precision in detail.
+
Turning, milling, welding

In addition to our meat processing machines and pressure washers, we are due to our mechanical production capacities also a competent partner in the area of turning and milling.

Präzision im
Detail.
Neu.Innovativ.Individuell
New. Innovative. Individual.
+
special machine
for meat processing

Highest quality and robust machines through high-quality stainless steel processing. All machines are customizable according to customer requirements and tailored to the needs.

Our Company
Blending & Mixing
Neu.
Innovativ.
Individuell.

previous arrow
next arrow
Slide 1
Image is not available
Image is not available
Image is not available
Image is not available
We move on. For you.
Special engineering, the experts for decades in the market segment of meat processing machines. This is what Stork & Herrmann.

Demand is always new, innovative and customized solutions. In thinking. In action. In doing.
Welcome to Stork & Herrmann.
The basis for success (video)
Series
WESTFALIA-mixing
Blending + Mixing
Over 90 years experience
in the production
of mixing machines
Blending + Mixing
+

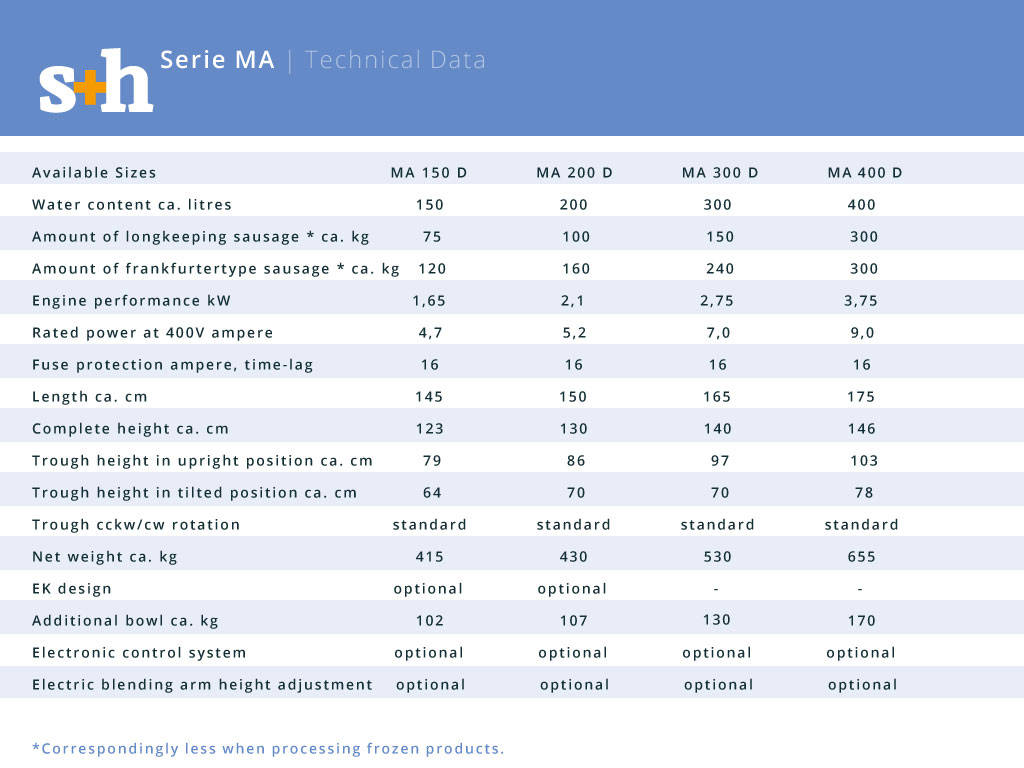

Series MA
+
Series MA
with mobile and tiltable bowl 150 - 200 - 300 - 400 Liter
mit fahr- und kippbarem Bottich 150 - 200 - 300 - 400 Liter
  1. Higher flexibility by the use of several blending cars.
  2. Direct emptying of the mixing cart via lifting masts or lifting arms on filling machines is possible.
  3. Long, inclined ramp for easy positioning of the trough in the machine.
  4. In the design without electrical control, a crank is used to turn the mixing arm up so that the mixing wagon can be driven out of the machine.

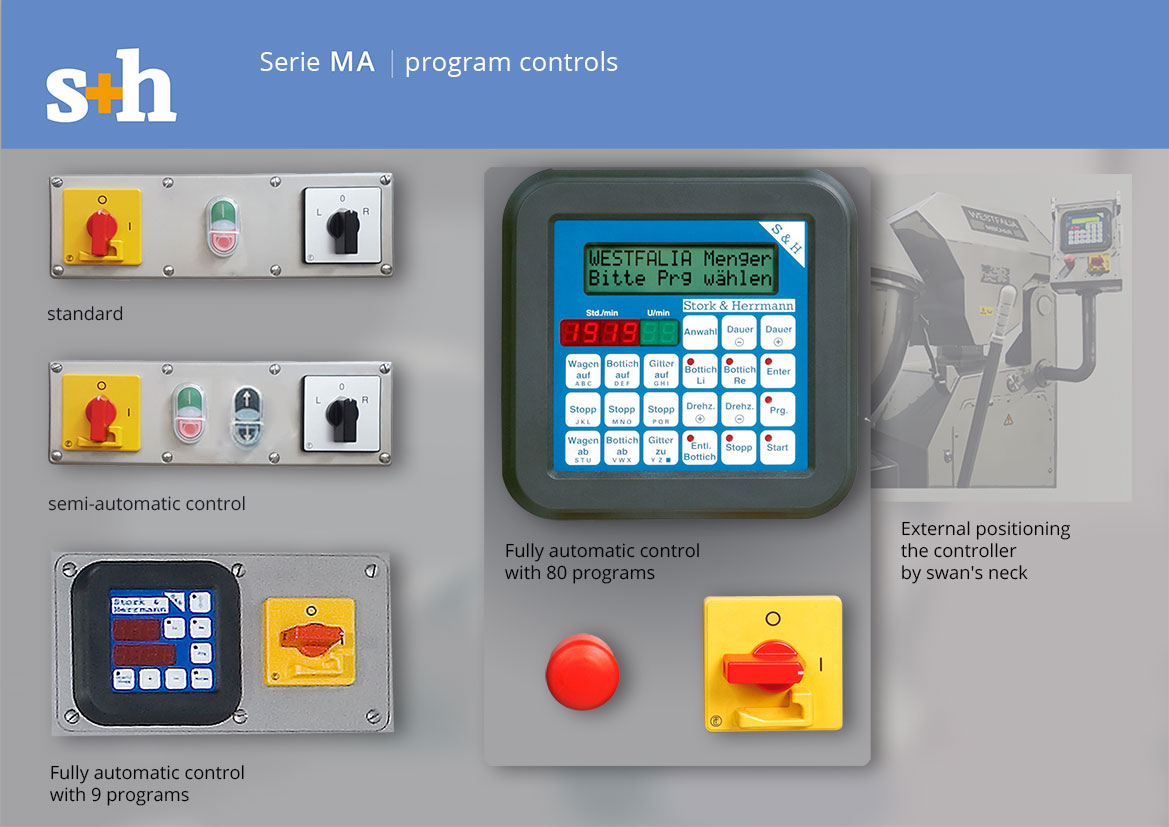

  5. All blenders can optionally be supplied with an electronic sequence control system where you can configure 9 different blending times and the change-over of the direction of rotation of the trough.
  6. Safe retention of the blending cars by massive locking devices.
  7. with built-in three-phase motors and switches
data sheet

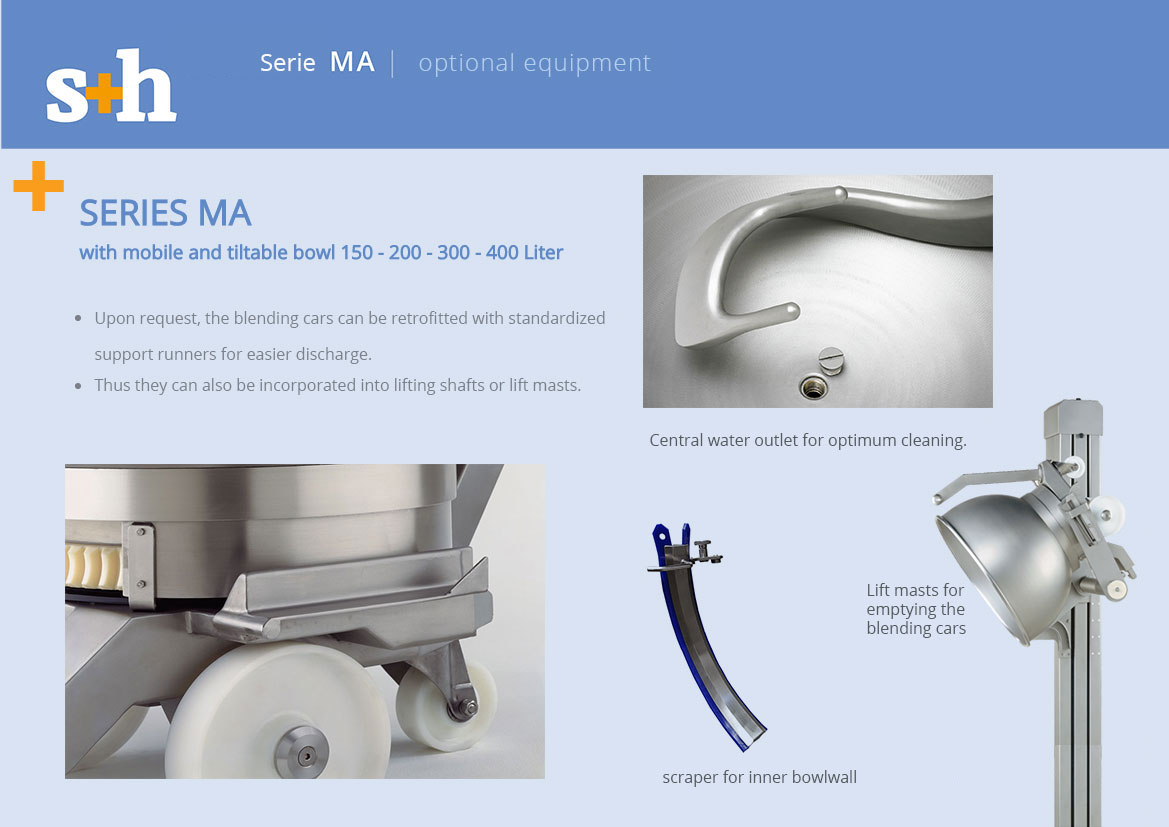

optional equipment

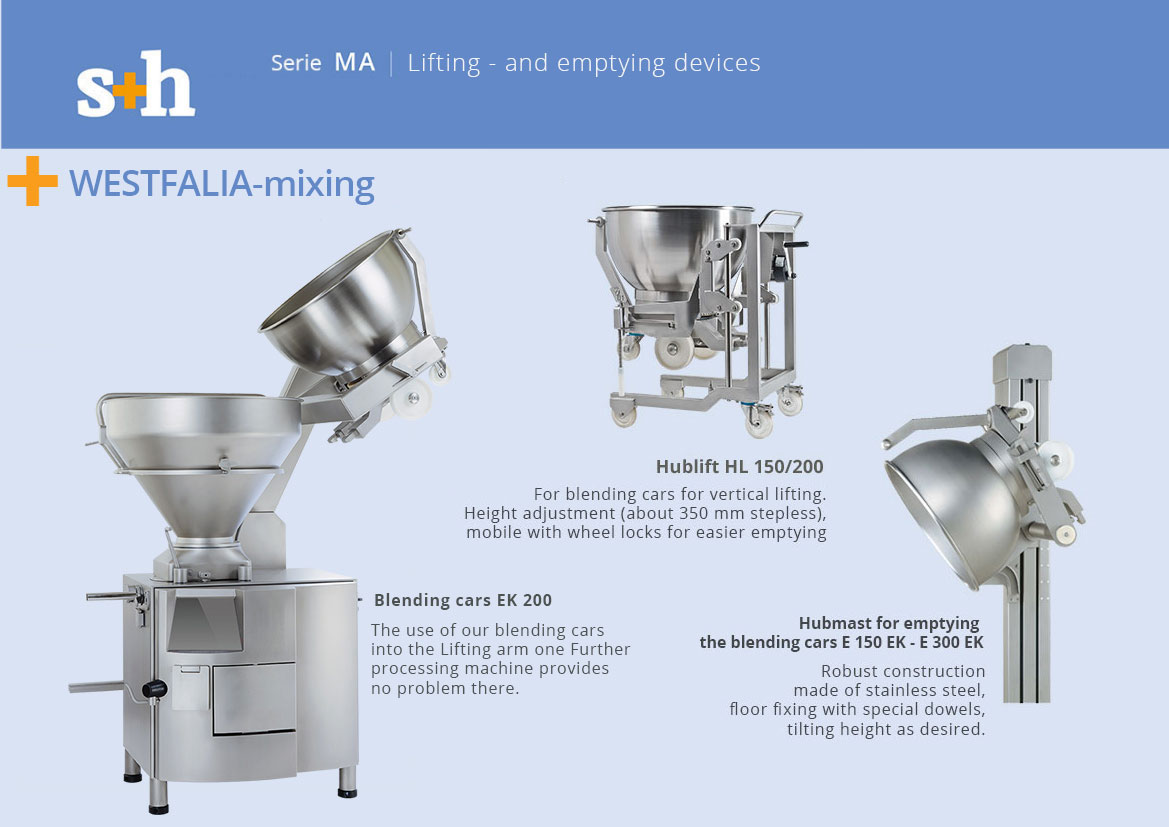

Lifting and discharge devices

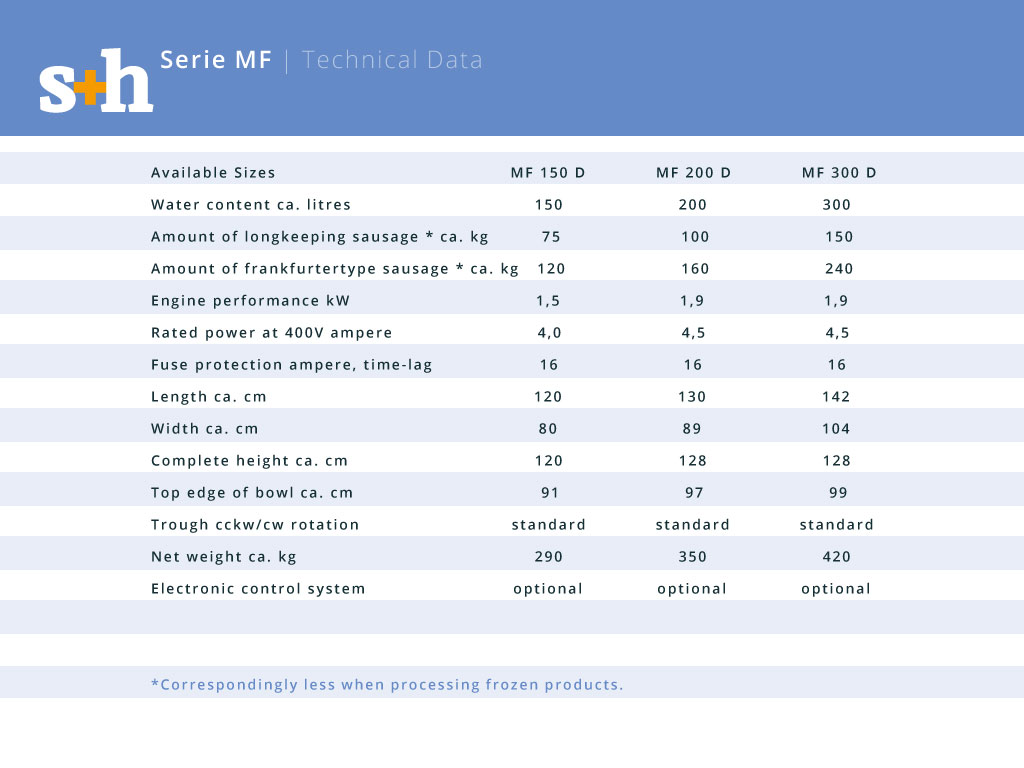

Series MF
+
Series MF
Fully mobile 150 - 200 - 300 litres
  1. The series is characterized by a compact and enclosed design.
  2. Long-term gear lubrication ensure an operation requiring but little maintenance.
  3. The machines are provided with central water outlet for optimum cleaning.
  4. Easy change of location by lockable plastic rollers.
data sheet

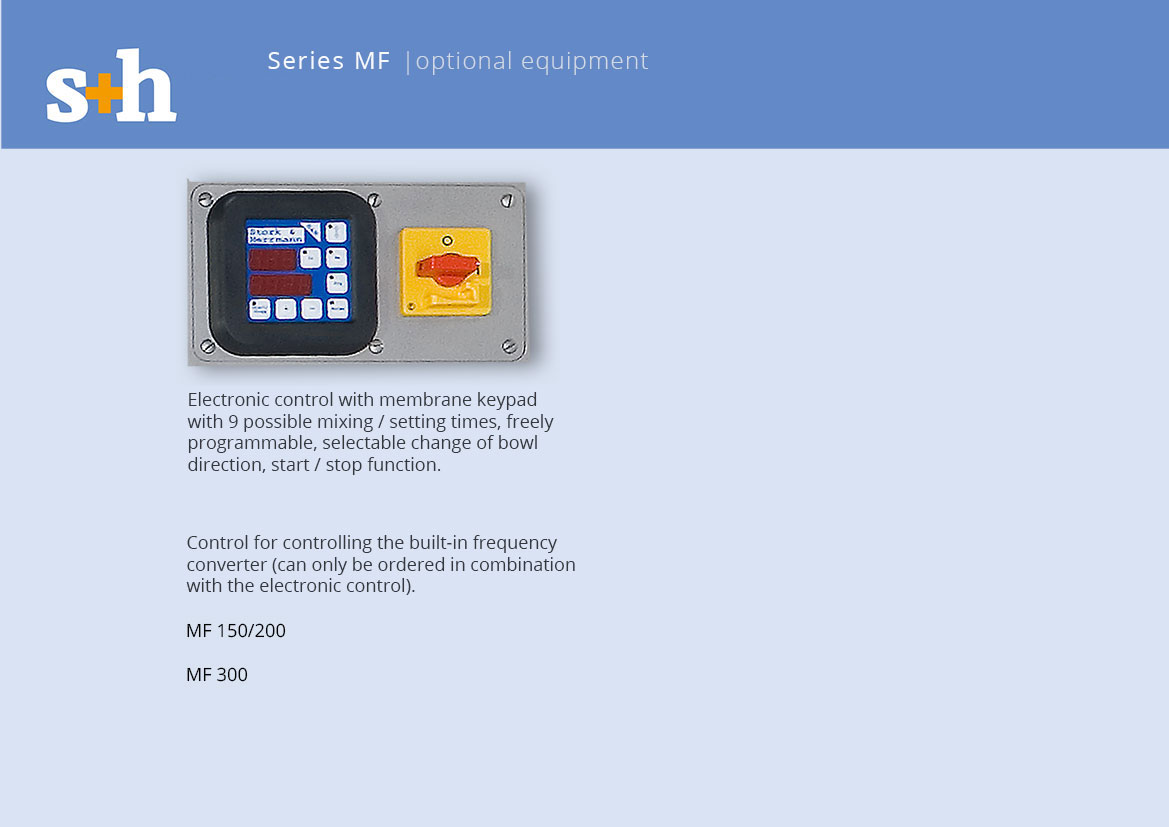

optional equipment
+
WESTFALIA Mischer MF
in komplett fahrbarer Ausführung 150 - 200 - 300 Liter
  1. Die kompakte, geschlossene Bauform zeichnet die Baureihe aus.
  2. Langzeitschmierung der Getriebe garantiereneinen wartungsarmen Betrieb.
  3. Alle Maschinen verfügen über einen zentralen Wasserablauf zur optimalen Reinigung.
  4. Leichter Standortwechsel durch arretierbare Kunststoffrollen.
Datenblatt

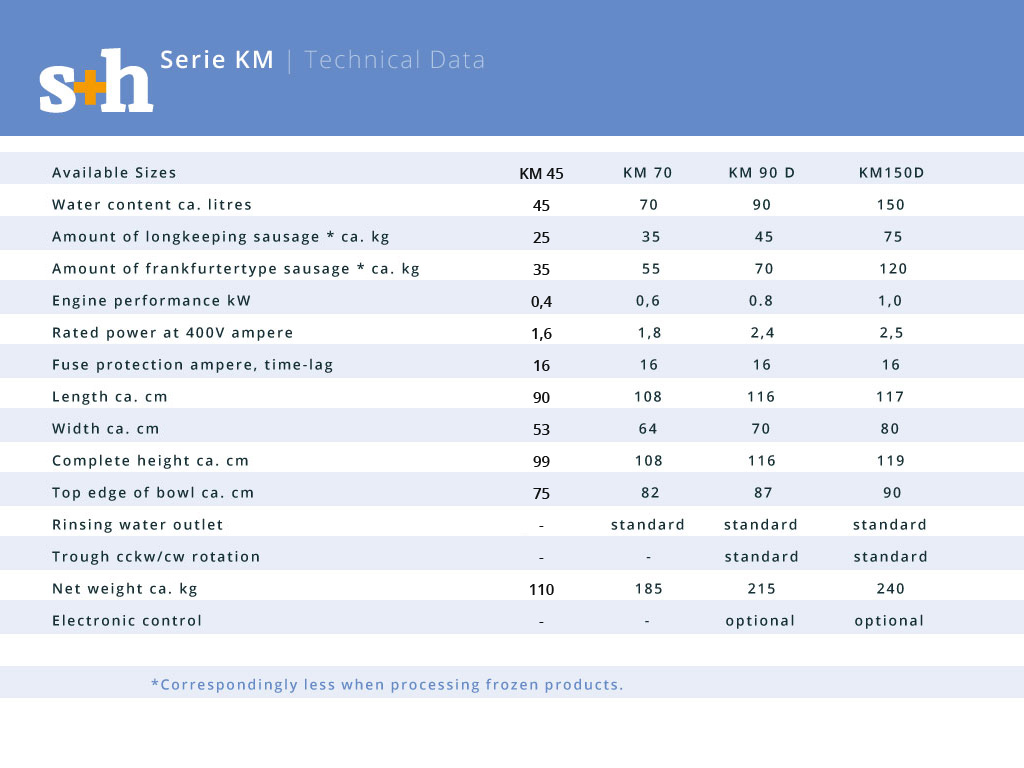

Series KM
+
Series KM
Fully mobile 45 - 70 - 90 - 150 litres
  1. The series is characterized by a compact and enclosed design.
  2. The KM series is highly suitable for smaller quantities with narrow space requirements.
  3. Central flushing water drain plug for easy cleaning of the tub (70 - 90 - 150 liters).
  4. If needed, you can respond and produce very quickly.
data sheet
optional equipment

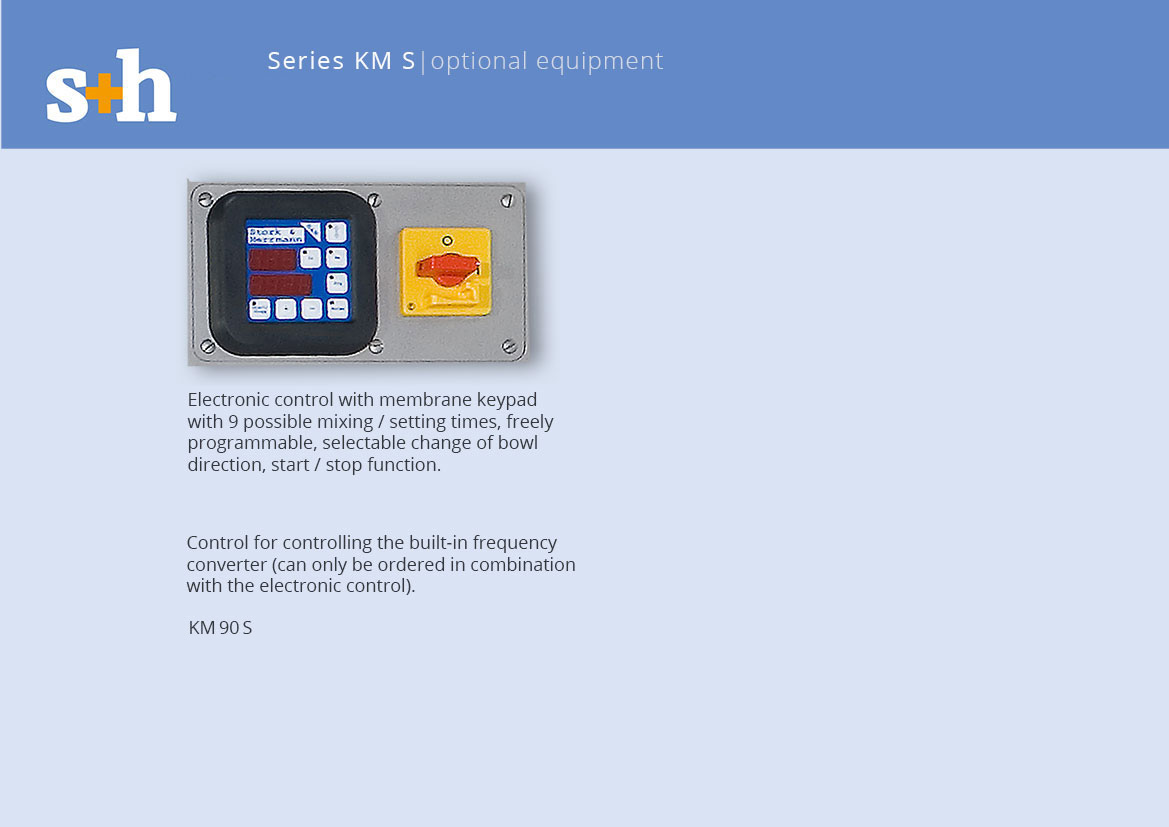

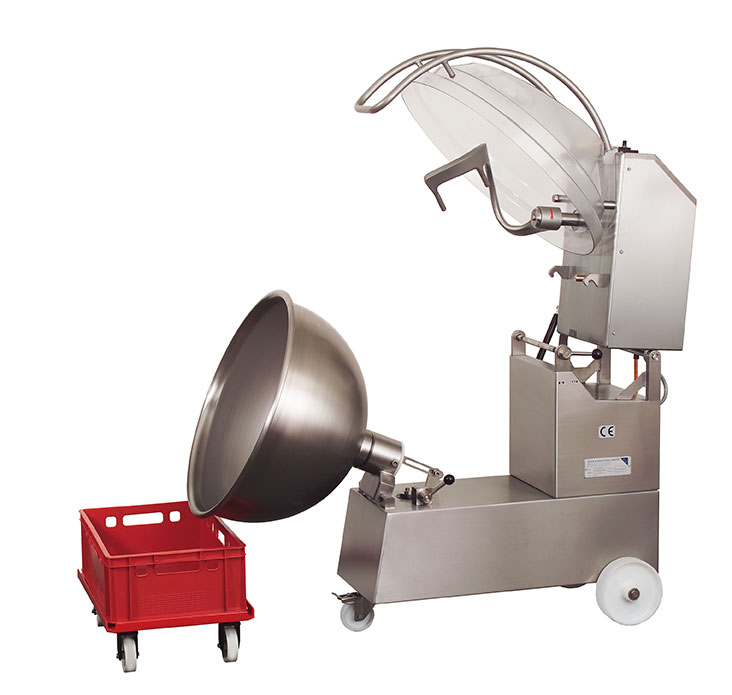

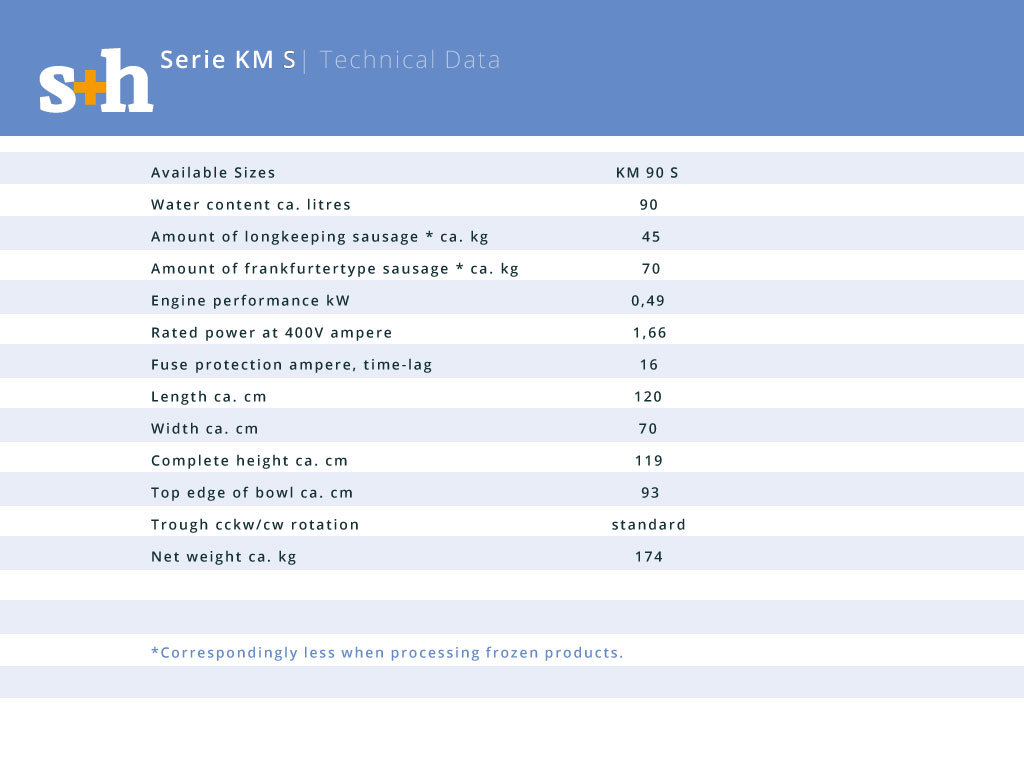

Series KM S
+
Series KM 90 S
Fully mobile 90 litres
  1. Easy and troublefee discharge of the blended or mixed product by using the tiltable trough.
  2. Time-saving and easy cleaning of the machine..
  3. Easy and quick operationof the tiling device.
  4. Select the desired mode of operation by pressing buttons.
  5. Free castering wheels which are lockable ensure high stability.
data sheet
optional equipment
WESTFALIA Mischer KM S
in komplett fahrbarer Ausführung 45 - 90 Liter
  1. Durch den schwenkbaren Bottich ist die Entnahme der gemengten bzw. gemischten Ware problemlos und einfach möglich.
  2. Die Maschine lässt sich zeitsparend und leicht reinigen.
  3. Einfache und schnelle Bedienung der Kippvorrichtung.
  4. Die Anwahl der gewünschten Betriebsart erfolgt mittels Drucktasten.
  5. Arretierbare Lenkrollen garantieren hohe Standfestigkeit.
+
Datenblatt

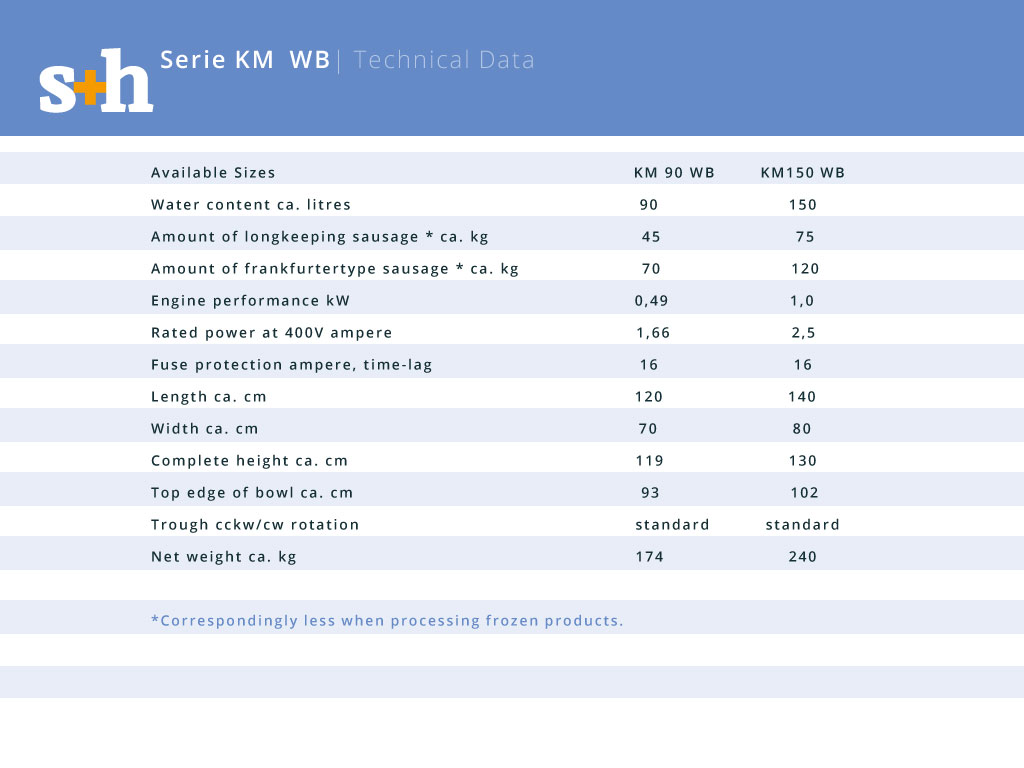

Series KM WB
+
Series KM WB
Using a fully mobile bowl changing system with 90 - 150 litre capacity.
  1. Higher flexibility by the use of several blending cars.
  2. Continuous production flow without long machine stops.
  3. Easy and quick operation of the tilting device.
data sheet

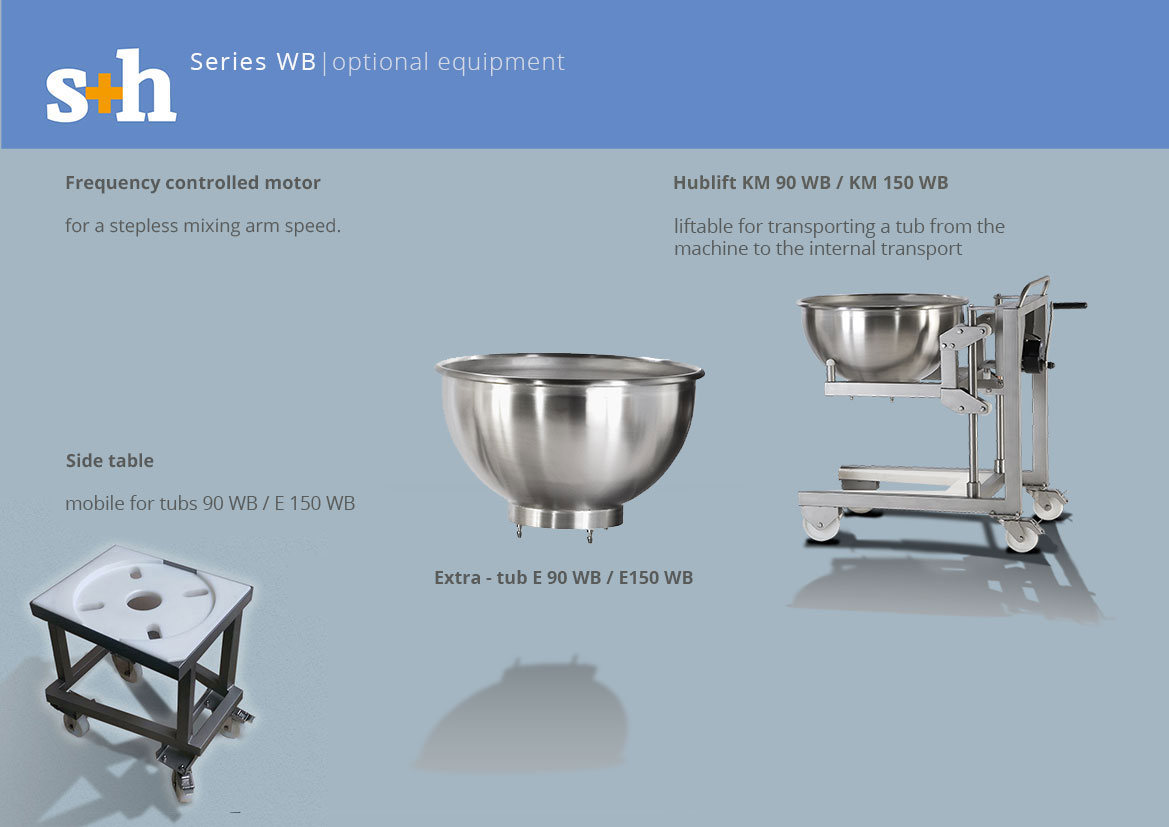

optional equipment
Lifting and discharge devices

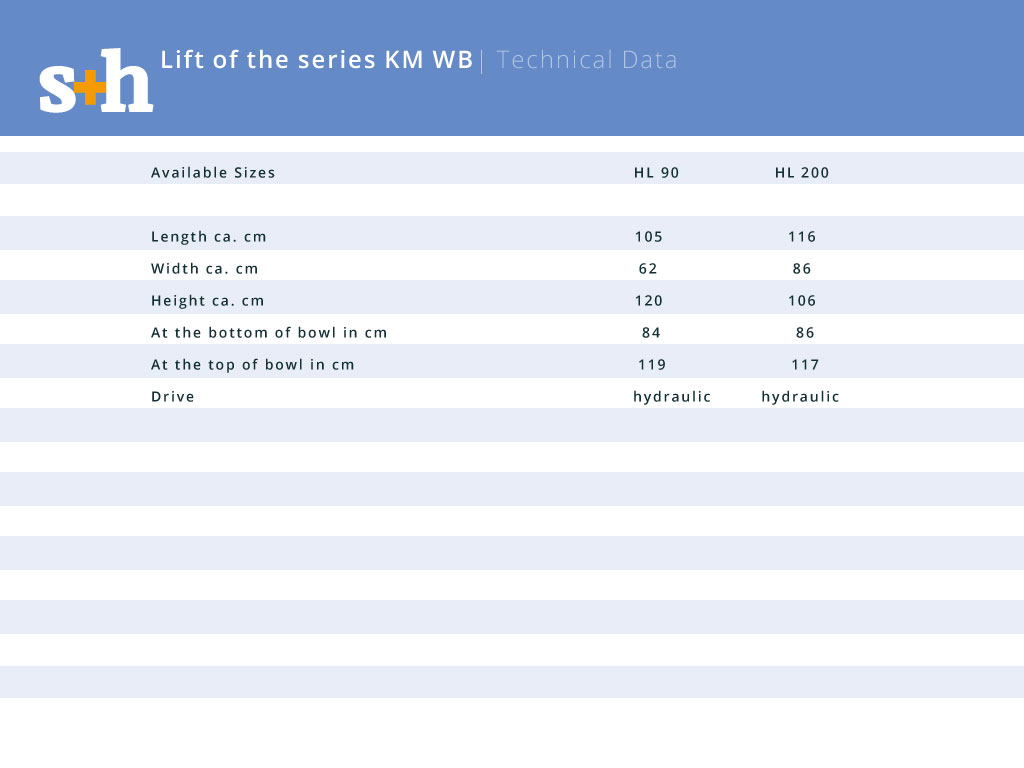

data sheet for the lift of the series
+
WESTFALIA Mischer KM WB
in komplett fahrbarer Ausführung mit 90 Liter Inhalt
und Bottichwechselsystem.
  1. Kontinuierlicher Produktionsablauf ohne langen Maschinenstillstand.
  2. Sichere Handhabung und schnelle Bedienung der Bottichverriegelung.
  1. Durch den entnehm- und verfahrbaren Bottich erhöhte Flexibilität bei Einsatz mehrerer Bottiche.
  1. Durch den entnehm- und verfahrbaren Bottich erhöhte Flexibilität bei Einsatz mehrerer Bottiche.
  2. Kontinuierlicher Produktionsablauf ohne langen Maschinenstillstand.
  3. Sichere Handhabung und schnelle Bedienung der Bottichverriegelung.
Datenblatt
Ideal for mixing
salads
!
Ideal zum
Salate
mischen!
Series U
+
WESTFALIA Mischer U415
Mischer mit 400 ltr. Inhalt zum Bearbeiten von Nahrungsmitteln aller Art
  1. Beschicken mit handelsüblichen Normwagen, schonende Produktbehandlung durch niedrige Kipphöhe
  2. Beschicken der Ware durch speziellen Hubmast
  3. Schonendes Behandeln der Produkte durch angepasste Geschwindigkeit des Mischarmes.
  4. Bis zu 80 Progamme, komplette Maschinensteuerung, Favoritenfunktion, Direkteingabefunktionstasten, Programmänderung im Prozeßablauf, Verzögerte Startfunktion
  5. Der eingebaute Abstreifer garantiert vollständige Entleerung ohne Produktverlust
Datenblatt
+

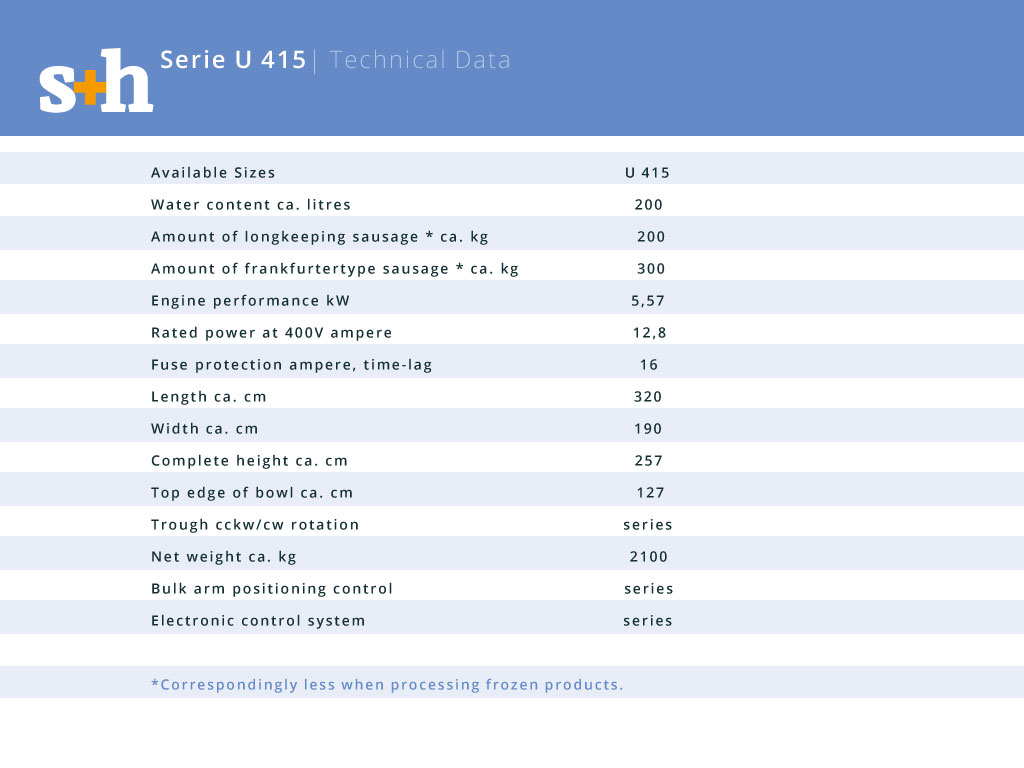

series U 415
from 400 litres
  1. Gentle product handling thanks to low tilting height
  2. Loading of the product via special lift mast
  3. Gentle product handling thanks to variable mixing arm speed.
  4. Up to 80 programs. Complete control of the machine. Favourite function. Buttons for direct entry of function. Program change in process sequence . Function for delayed start.
  5. The integrated scraper ensures full discharge without any product loss.
data sheet
Video

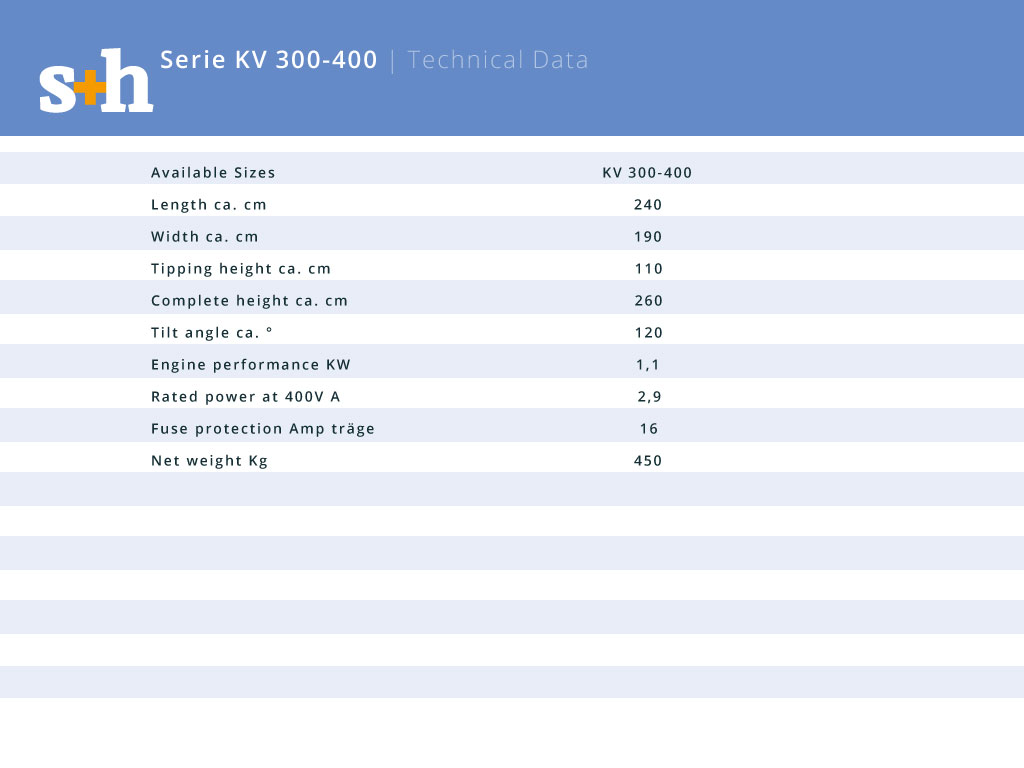

Series KV
+
Series KV 300-400
Tilting device for emptying mixing cars of 300 to 400 litres capacity.
data sheet
Datenblatt
+
Kippvorrichtung KV 300 - 400
Kippvorichtung zum Entleeren der Mengwagen 300 und 400 Liter
der Baureihe MA.
Blending + Mixing
Over 90 years experience
in the production
of mixing machines
Blending + Mixing
+
Series MA
+
Series MA
with mobile and tiltable bowl 150 - 200 - 300 - 400 Liter
  1. Higher flexibility by the use of several blending cars.
  2. Continuous production flow without
  3. long machine stops.
  4. Long, inclined ramp for easy positioning of the trough in the machine.
  5. A crank serves to rev up the blendingarmes so that the blending cars can be driven out of the machine.
  6. All blenders can optionally be supplied with an electronic sequence control system where you can configure 9 different blending times and the change-over of the direction of rotation of the trough.
  7. Safe retention of the blending cars by massive locking devices.
  8. with built-in three-phase motors and switches
data sheet
optional equipment
Lifting and discharge devices
Series MF
+
Series MF
Fully mobile 150 - 200 - 300 litres
  1. The series is characterized by a compact and enclosed design.
  2. Long-term gear lubrication ensure an operation requiring but little maintenance.
  3. The machines are provided with central water outlet for optimum cleaning.
  4. Easy change of location by lockable plastic rollers.
data sheet
optional equipment
Series KM
+
Series KM
Fully mobile 45 - 70 - 90 - 150 litres
  1. The series is characterized by a compact and enclosed design.
  2. The KM series is highly suitable for smaller quantities with narrow space requirements.
  3. Central flushing water drain plug for easy cleaning of the tub (70 - 90 - 150 liters).
  4. If needed, you can respond and produce very quickly.
data sheet
optional equipment
Series KM S
+
Series KM 90 S
Fully mobile 90 litres
  1. Easy and troublefee discharge of the blended or mixed product by using the tiltable trough.
  2. Time-saving and easy cleaning of the machine..
  3. Easy and quick operationof the tiling device.
  4. Select the desired mode of operation by pressing buttons.
  5. Free castering wheels which are lockable ensure high stability.
data sheet
optional equipment
Series KM WB
+
Series KM WB
Using a fully mobile bowl changing system with 90 - 150 litre capacity.
  1. Higher flexibility by the use of several blending cars.
  2. Continuous production flow without long machine stops.
  3. Easy and quick operation of the tilting device.
data sheet
optional equipment
Lifting and discharge devices
data sheet for the lift of the series
Ideal for mixing
salads
!
Baureihe U415
+
series U 415
from 400 litres
  1. Gentle product handling thanks to low tilting height
  2. Loading of the product via special lift mast
  3. Gentle product handling thanks to variable mixing arm speed.
  4. Up to 80 programs. Complete control of the machine. Favourite function. Buttons for direct entry of function. Program change in process sequence . Function for delayed start.
  5. The integrated scraper ensures full discharge without any product loss.
data sheet
Video
Series KV
+
Series KV 300-400
Tilting device for emptying mixing cars of 300 to 400 litres capacity.
  1. Leichte Baureihe, zum Mengen von frischer gewolfter Ware, Salate etc.
  2. Schwenkbarer Bottich u. Mengarm

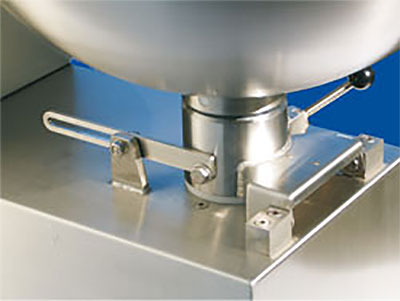

  3. Stabile Lagerung

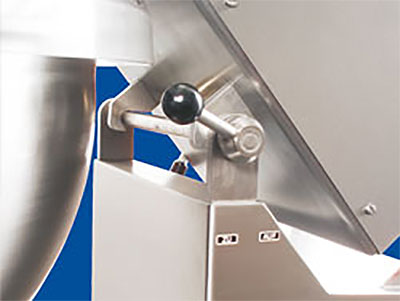

  4. Robuste Veriegelung
data sheet
previous arrow
next arrow
WESTFALIA – DER Menger.
Image is not available

Each mixing arm must be individually adapted to its supplied tub.

Continuous adjustment to the latest knowledge in meat pro­cessing assures the high performence level of WESTFALIA-mixing machines.

Due to the special design of the spiral mixing ele­ment the WESTFALIA-mixing machines are uni­que in being able to mix and form long-keeping sausages in one operation.
The sausage meal is neither mashed nor heated.

With the WESTFALIA-mixing machine also ham cuts can easily be tumbled without the need of any change-over. For the processing of German sausages like "frankfurter-type sausages, cook sausages", pastries, salads and other tender sub­stances a change in direction of the bowl is recommended.

The hemispherical trough is highly suited for the economical blending of even very small quantities up to 1 /3 of the trough filling level by using counterrotation

Housing parts meet highest quality standards. They are made out of solid stainless steel and are, of course, corrosion-resistant. Special seals provide for soil-free operation of the complete rotation system. All rollers are made out of plastic material and allow for good mobility.

The well thought-out design provides for easy handling properties. Operation in practice as well as cleaning will fully come up to your demands.

Made in Germany

The outstanding performance of WESTFALIA mixing machines is the result of more than 90-years experience in the production of mixing machines over four generations.

WESTFALIA - mixing
clean
clean
+
High pressure cleaner
and foam systems
with high grade steel lining
High pressure cleaner
+
High pressure cleaner
High pressure cleaner with high grade steel lining
Hochdruckreiniger mit Edelstahlverkleidung
  1. On plastic wheels with stainless axles mobile,,
  2. or as wall equipment with high-grade steel console
  3. with inserted three-phase motor,protective switchgear,drive over drive belt, with reduced number of revolutions of current three-piston and high-grade steel valve
  4. sucking in over brass element to 70°C water temperature or direct connection at warm water line to 70°C max. 4 bar.
  5. steplessly adjustable pressure relief valve,
  6. 5 m cable,3 m hose for sucking, 10 m high-pressure hose.

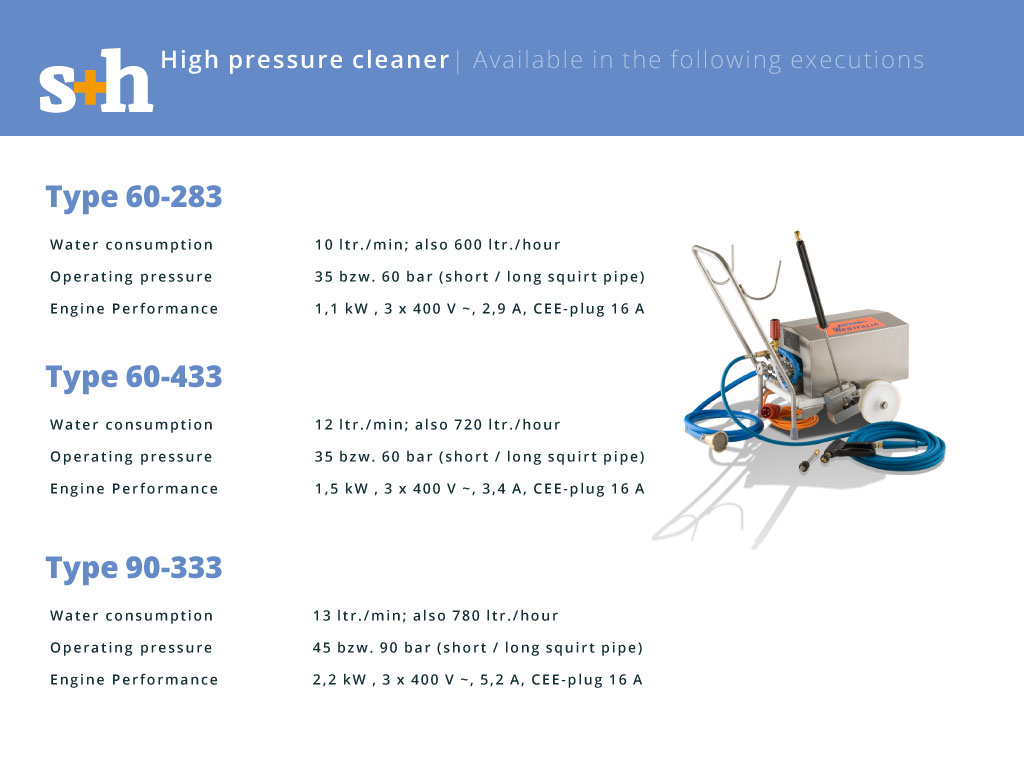

Executions

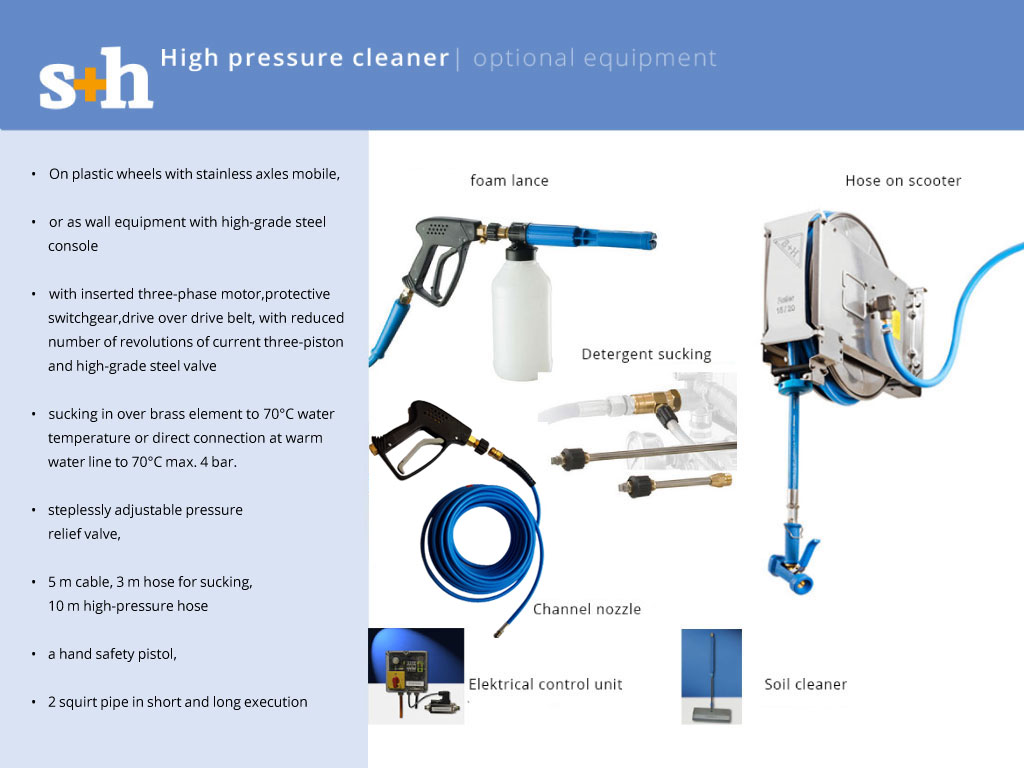

optional equipment
Low pressure foam systems
+
WESTFALIA
Low pressure foam systems in mobile and stationary model
Schaumwagen
  1. For foaming with foamable cleaning agents
  2. Chassis with wheel locks, accommodating 2 cleaning canisters a 25 kg content
  3. Single lever mixer to select 3 functions: chemistry 1, chemistry 2, or rinse
  4. Integrated hose reel with 10 meter hose DN 12
  5. 5 m water inlet hose, 5 m compressed air hose, 5 m cable with CE plug 16 A
  6. Economical water consumption, approx. 15 ltr. / Minute
  7. Compressed air connection required on site: (minimum 6 bar, approx. 250 ltr. / Minute)
  8. Integrated booster pump, max. 40 bar working pressure

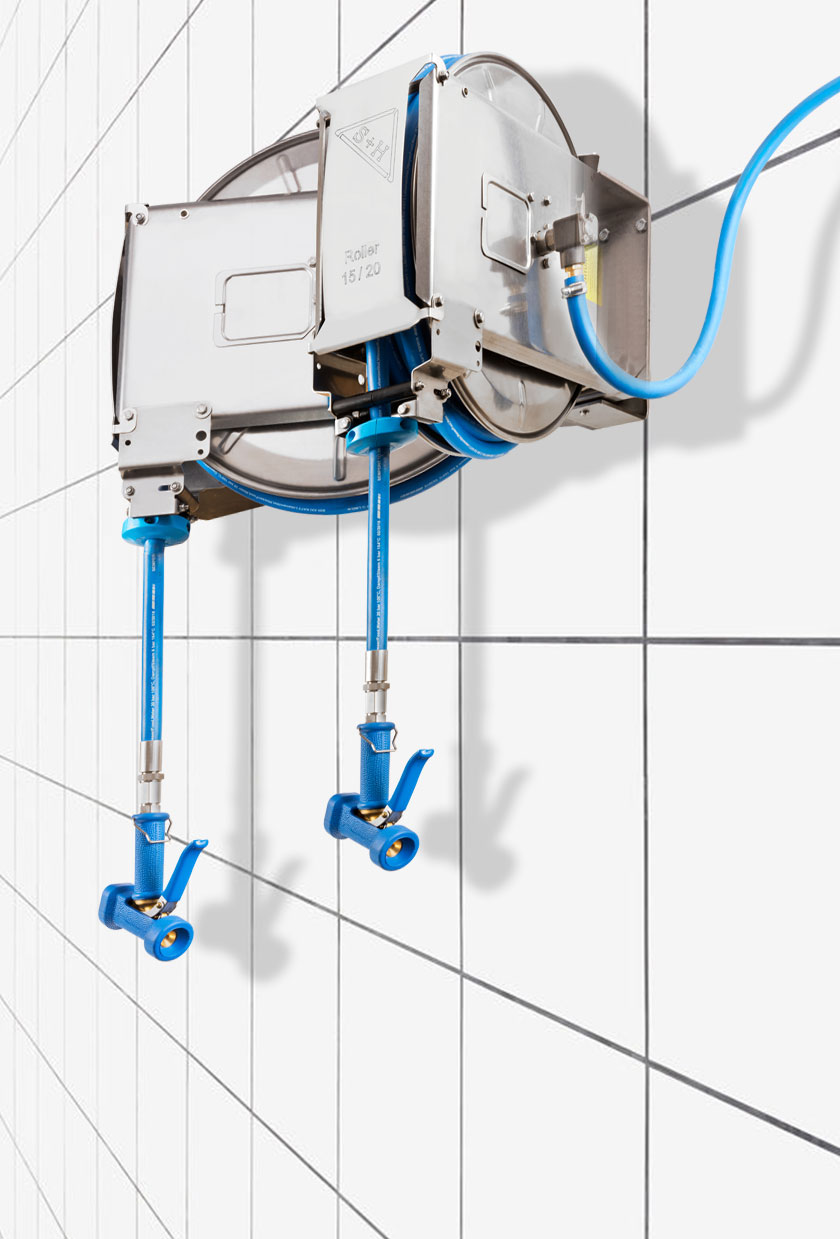

Hose reel
+
Hose reel
Systems of low and high pressure applications
Schaumwagen
  1. Stainless steel Hose reel with automatic retractor
  2. The hose can be stopped at 8 positions per each rotation
clean
clean
+
High pressure cleaner
and foam systems
with high grade steel lining
High pressure cleaner
+
High pressure cleaner
High pressure cleaner with high grade steel lining
  1. On plastic wheels with stainless axles mobile,,
  2. or as wall equipment with high-grade steel console
  3. with inserted three-phase motor,protective switchgear,drive over drive belt, with reduced number of revolutions of current three-piston and high-grade steel valve
  4. sucking in over brass element to 70°C water temperature or direct connection at warm water line to 70°C max. 4 bar.
  5. steplessly adjustable pressure relief valve,
  6. 5 m cable,3 m hose for sucking, 10 m high-pressure hose.
Executions
optional equipment
Low pressure foam systems
+
WESTFALIA
Low pressure foam systems in mobile and stationary model
  1. For foaming with foamable cleaning agents
  2. Chassis with wheel locks, accommodating 2 cleaning canisters a 25 kg content
  3. Single lever mixer to select 3 functions: chemistry 1, chemistry 2, or rinse
  4. Integrated hose reel with 10 meter hose DN 12
  5. 5 m water inlet hose, 5 m compressed air hose, 5 m cable with CE plug 16 A
  6. Economical water consumption, approx. 15 ltr. / Minute
  7. Compressed air connection required on site: (minimum 6 bar, approx. 250 ltr. / Minute)
  8. Integrated booster pump, max. 40 bar working pressure
Hose reel
Systems of low and high pressure applications
+
Hose reel
Systems of low and high
pressure applications
  1. Stainless steel Hose reel with automatic retractor
  2. The hose can be stopped at 8 positions per each rotation
previous arrow
next arrow
Subcontracting
Open to diversity
+
Open to diversity
Your competent
contact partner
for turning, milling
and welding
Subcontracting
+
Subcontracting
  1. In addition to our meat processing machines and pressure washers,
  2. we are due to our mechanical production capacities also a competent
  3. partner in the area of turning and milling.
  4. We are able to process all common materials, in particular VA-processing.
  5. Here, our focus lies on small and medium batch sizes.
Milling
+
milling
  1. The ROTASwing® series is specially designed for high-precision 5- / 6-sided machining.
  2. Wherever power, accuracy and universality are required, the design offers many advantages. Digital drives on all axes, direct position measuring system and slip-stick-free roller guides guarantee precision and longevity of the machines. Whether high-torque main spindles with 8000 rpm or liquid-cooled CELOX® motor spindles, the performance profile of the ROTASwing® series enables a wide range of applications.
PlayPlay
Turning
+

Turning is a machining process. A disc turret with driven tools enables the production of complex turning contours.

DMG lathes with driven tools and y-axis
Max. Turning diameter: 410 mm
Max. Turning length: 700 mm
Bar passage: 76 mm

Turning
Turning II
+
Turning

The turning is characterized by a closed, mostly circular cutting movement and any feed movement in a direction perpendicular to the cutting direction plane. The axis of rotation of the cutting movement maintains its position to the workpiece regardless of the feed movement.

Welding
+
welding
  1. stainless steel processing
  2. TIG welding
  3. (small to medium assemblies)
  4. Tungsten inert gas welding is a welding process from the group of inert gas welding that is used for arc welding, which in turn is used for fusion welding. In TIG welding, an electric arc burns between the workpiece and an electrode made of tungsten
previous arrow
next arrow
Open to diversity
Open to diversity
+
Your competent
contact partner
for turning, milling
and welding
Subcontracting
+
Subcontracting
  1. In addition to our meat processing machines and pressure washers,
  2. we are due to our mechanical production capacities also a competent
  3. partner in the area of turning and milling.
  4. We are able to process all common materials, in particular VA-processing.
  5. Here, our focus lies on small and medium batch sizes.
Milling
+
milling
PlayPlay
  1. The ROTASwing® series is specially designed for high-precision 5- / 6-sided machining.
  2. Wherever power, accuracy and universality are required, the design offers many advantages. Digital drives on all axes, direct position measuring system and slip-stick-free roller guides guarantee precision and longevity of the machines. Whether high-torque main spindles with 8000 rpm or liquid-cooled CELOX® motor spindles, the performance profile of the ROTASwing® series enables a wide range of applications.
Turning
+
Turning

Turning is a machining process. A disc turret with driven tools enables the production of complex turning contours.

DMG lathes with driven tools and y-axis
Max. Turning diameter: 410 mm
Max. Turning length: 700 mm
Bar passage: 76 mm

Turning II

The turning is characterized by a closed, mostly circular cutting movement and any feed movement in a direction perpendicular to the cutting direction plane. The axis of rotation of the cutting movement maintains its position to the workpiece regardless of the feed movement.

Turning
+
Welding
+
welding
  1. stainless steel processing
  2. TIG welding
  3. (small to medium assemblies)
  4. Tungsten inert gas welding is a welding process from the group of inert gas welding that is used for arc welding, which in turn is used for fusion welding. In TIG welding, an electric arc burns between the workpiece and an electrode made of tungsten
previous arrow
next arrow
The company
The customer as a partner
The customer as a partner:
We are relationship managers!
+

The basis of our long term success is having a competent and fair partnership with our customers, so much so, that we prioritize our flexibility in fulfilling our individual customer requirements.

Traditional Craft with a future
traditional
Craft with a future
+

Our goal is to constantly improve technically our products and to strengthen our market position. Thus we seek a balanced growth and are constantly looking for new solutions. We welcome joint cooperation with competent and reliable partners.

Our capital
our capital
+

We place great importance to safeguarding the jobs of our dedicated work force at our production facility in Gütersloh, as our employees are our assets.

Together with our staff we have the ability to produce and deliver in a reasonable time frame, individual special machines for special applications !

Trust is good
TRUST IS GOOD
+

With professional consulting, sophisticated technology, very high production quality in conjunction with utmost reliability, we would like to constantly reap the trust of our customers.

previous arrow
next arrow
Management
The basis for success
More than 90 years experience –
Quality from Gütersloh
+
The company
+

Our activities have been focused for more than 60 years, primarily on development and manufacture of mixing and blending machinery, which were developed specially for butcher's shops, delicacy or gastronomy enterprises.

The Company
The customer as a partner
The customer as a partner:
We are relationship managers!
We are
Relationship Manager!
+

The basis of our long term success is having a competent and fair partnership with our customers, so much so, that we prioritize our flexibility in fulfilling our individual customer requirements.

Traditional Craft with a future
traditional
Craft with a future
Craft with a future
+

Our goal is to constantly improve technically our products and to strengthen our market position. Thus we seek a balanced growth and are constantly looking for new solutions. We welcome joint cooperation with competent and reliable partners.

Our assets
+

We place great importance to safeguarding the jobs of our dedicated work force at our production facility in Gütersloh, as our employees are our assets.

Together with our staff we have the ability to produce and deliver in a reasonable time frame, individual special machines for special applications !

our assets
Trust is good
+

With professional consulting, sophisticated technology, very high production quality in conjunction with utmost reliability, we would like to constantly reap the trust of our customers.

TRUST IS GOOD
TRUST IS GOOD
previous arrow
next arrow

Imprint | Disclaimer | data protection

+49 (0) 5241 12 901
+49 (0) 5241 25 818
mail_outline
infoXYZ@stork-herrmann-gmbh.de (Spam protection, please remove the XYZ)
Stork+Herrmann GmbH | Kahlertstraße 40 | 33330 Gütersloh | Germany
Geschäftsleitung
Are always in demand new,
innovative and customized solutions.
In spirit, in making, in behavior

We move on. For you.
Contact
“
Tina Teismann
Gieslind Westerhold Herrmann

Would you like an appointment for a preliminary talk
or do you need an offer? Mrs. Teismann or
Mrs. Westerhold Herrmann takes yours
  Customer wishes with pleasure.
+49 (0)5241 12 901
Contact
Impressum | Disclaimer | Datenschutz

Impressum | Disclaimer | Datenschutz

Stork+Herrmann GmbH | Kahlertstraße 40 | 33330 Gütersloh
Stork+Herrmann GmbH
Kahlertstraße 40
33330 Gütersloh
mail_outline
infoXYZ@stork-herrmann-gmbh.de (Spam protection, please remove the XYZ)
mail_outline
infoXYZ@stork-herrmann-gmbh.de
(Spam protection, please remove the XYZ)
+49 (0) 5241 25 818
+49 (0) 5241 25 818
+49 (0) 5241 12 901
+49 (0) 5241 12 901
Geschäftsleitung
Contact
Tina Teismann
Are always in demand new,
innovative and customized solutions.
In thinking. In action. In doing.

We move on. For you.
Would you like an appointment for a preliminary talk or do you need an offer? Mrs. Teismann or
Mrs. Westerhold Herrmann takes yours Customer wishes with pleasure.
Gieslind Westerhold Herrmann
“
+49 (0)5241
12 901
Contact
Tina Teismann
Tina Teismann
Gieslind Westerhold Herrmann
Contact
Would you like an appointment for a preliminary talk or do you need an offer? Mrs. Teismann or
Mrs. Westerhold Herrmann takes yours Customer wishes with pleasure.
contact
+49 (0)5241 12 901
